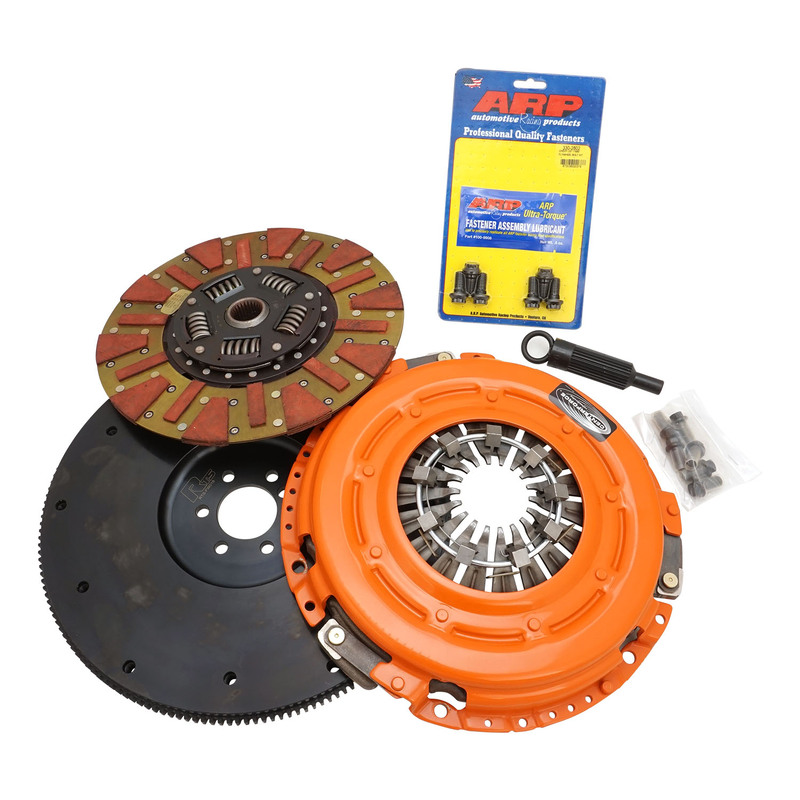

LS Chevrolet Holden Commodore 11″ Billet Flywheel & 12″ Clutch Assembly, ARP Pressure Plate & Flywheel Bolts

_x000D_
_x000D_

Save $$ by purchasing a RTS Clutch package which includes all the items associated with completing the job sucessfully

_x000D_
_x000D_

* Note : This is a high end kit, and should not be confused with cheaper alternatives

_x000D_
_x000D_

FLYWHEEL

_x000D_
_x000D_

RTS Explosion Proof billet steel flywheels are designed from the ground up to deliver high performance results. Starting with CAD engineering and tested to limits far above the SFI-ratings, these flywheels are then constructed from 4140 high-quality materials to ensure reliable results.  These flywheels are sure to deliver what they promise:
_x000D_

_x000D_
Features include:
_x000D_

_x000D_
* CAD engineered
_x000D_
* 4140 Steel and Heat-treated ring gears
_x000D_
* Available in Standard finish or with a black oxide anti-corrosive finish
_x000D_
* CNC-machined finish
_x000D_
* Available in multiple configurations

_x000D_
_x000D_

Note: The black coating is a black chemical conversion coating (not physically coated) and will not affect clutch discs.

_x000D_
_x000D_

Clutch Kit

_x000D_
_x000D_

_x000D_
_x000D_

The Centerforce ® Dual Friction ® Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides.
_x000D_

_x000D_
The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

_x000D_
_x000D_

Feature’s

_x000D_
_x000D_

The Centerforce Dual Friction ® Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

_x000D_
_x000D_

_x000D_
• 12″ Diameter

_x000D_

• 1-1/8″ x 26 Spline Input Shaft

_x000D_

• Holds Up To 700 ft/lbs of Torque

_x000D_

• Sprung Hub Disc with Organic/Carbon Composite Material

_x000D_

• Centrifugally Assisted

_x000D_

• Dual Friction® Design

_x000D_

• Ball Bearing Pressure Plate (where Applicable)

_x000D_

• Light Pedal Effort

_x000D_

• High Quality Friction Material

_x000D_

• Increased Holding Capacity

_x000D_

• Smooth Engagement

_x000D_

_x000D_
_x000D_

Spec’s

_x000D_
_x000D_

_x000D_
_x000D_

_x000D_
• Torque Capacity FT/LB: 700

_x000D_

• Out of Package Weight LBS: 29.65

_x000D_

• Material: Cast Iron Pressure Plate / Segmented Organic Friction

_x000D_

• Input Shaft Diameter IN: 1-1/8

_x000D_

• Input Spline Quantity: 26

_x000D_

• Clutch Disc Diameter IN: 12

_x000D_

• Disc Material: Organic/Carbon composite

_x000D_

• Disc Type Sprung Solid: Sprung

_x000D_

• Disc Type: Segmented face

_x000D_

• Counterweight Assist: YES

_x000D_

• Clutch Bolt Pattern: 14
