Proflow Cylinder Heads & Intake Manifold Kit

_x000D_
_x000D_

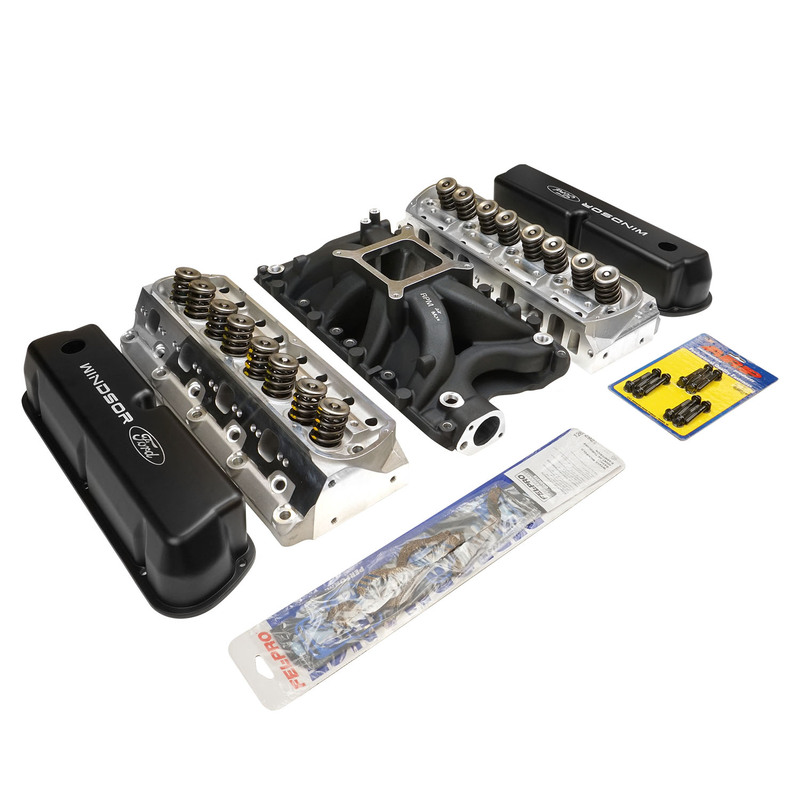

Kit Includes Proflow Aluminium Cyl Heads,  Proflow Intake Manifold, Valve Covers , Intake Gaskets , Intake Bolts

_x000D_
_x000D_

Proflow Cylinder Heads do not sacrifice quality for a low price–you get both with our aluminium cylinder heads. The lightweight heads are cast from A-356 aluminium alloy with a large choice of Engine, for SB & BB Chevrolet, LS Chev Holden Ford SB 289-351W, 302,351 Cleveland 2V & 3V & BB FE, and Chrysler SB & BB, phosphorous bronze valve guides, and ductile iron valve seats for use with unleaded gas. They’re also end-milled and drilled for accessories. The fully assembled heads have stainless steel valves, High Performance valve springs, 7 degree valve locks, rocker arm studs, and guideplates. Perfect for your Mild or High performance Hot Rod.

_x000D_
_x000D_

Specifications:

_x000D_
_x000D_

_x000D_
• Material:  A356 Aluminium

_x000D_

• Combustion Chamber:  58cc

_x000D_

• Intake Port Volume:  205cc

_x000D_

• Intake Port Dimension:  2.13″ x 1.28″

_x000D_

• Exhaust Port Volume:  71cc

_x000D_

• Exhaust Port Dimension:  1.40″ H x 1.40″ W

_x000D_

• Exhaust Port Location:  Raised .250″

_x000D_

• Spark Plug Location:  OEM

_x000D_

• Intake Valve Dimensions:  2.08″ x 5.00″ x 8mm

_x000D_

• Exhaust Valve Diameter:  1.60″

_x000D_

• Valve Stem Diameter:  8mm

_x000D_

• Valve Spring Diameter: 1.575″ (40mm)

_x000D_

• Maximum Valve Lift: 0.710″ @ 490lbs

_x000D_

• Spring Installed Height: 2.04″ @ 146lbs

_x000D_

• Valve Spring Pocket I.D.:  1.64″

_x000D_

• Valve Guide Material:  Manganese Bronze

_x000D_

• Valve Guide O.D.:  .490″ (.560″at base)

_x000D_

• Rocker Stud Thread Size: 7/16″ x 14

_x000D_

• Valve Angle:  20°

_x000D_

• Deck Thickness:  .750″

_x000D_

_x000D_
_x000D_

Proflow’s single-plane Max Jnr Intake manifolds are very versatile and can be used for drag racing and Oval Track competition, as well as for street applications. Power bands range from 3,500 to 7,000 rpm, on up to 4,500 to 8,000 rpm. There are applications for small block and big block engines, as well as for 2-barrel and 4-barrel carburetors.

_x000D_
_x000D_

Proflow Cast Valve Cover’s What’s a high performance Ford without a set of Proflow Chev or Ford Logo valve covers. These are Tall Cast aluminium black powder coat finish. The valve covers are available in a variety of styles with an array of logos that are sure to add an individual touch to your engine.

_x000D_
_x000D_

Felpro Intake Gasket : Fel-1262

_x000D_
_x000D_

ARP Intake Bolt Kit :  ARP-154-2001
